XXSはデザインが異なります

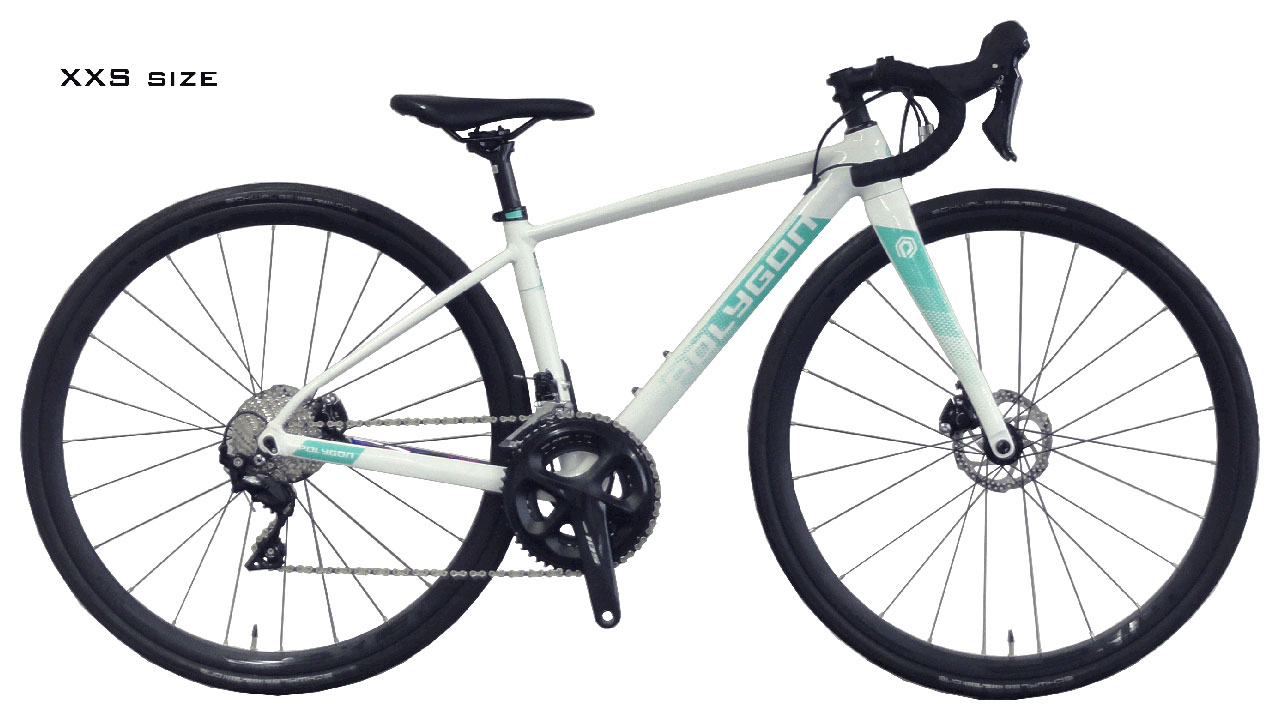

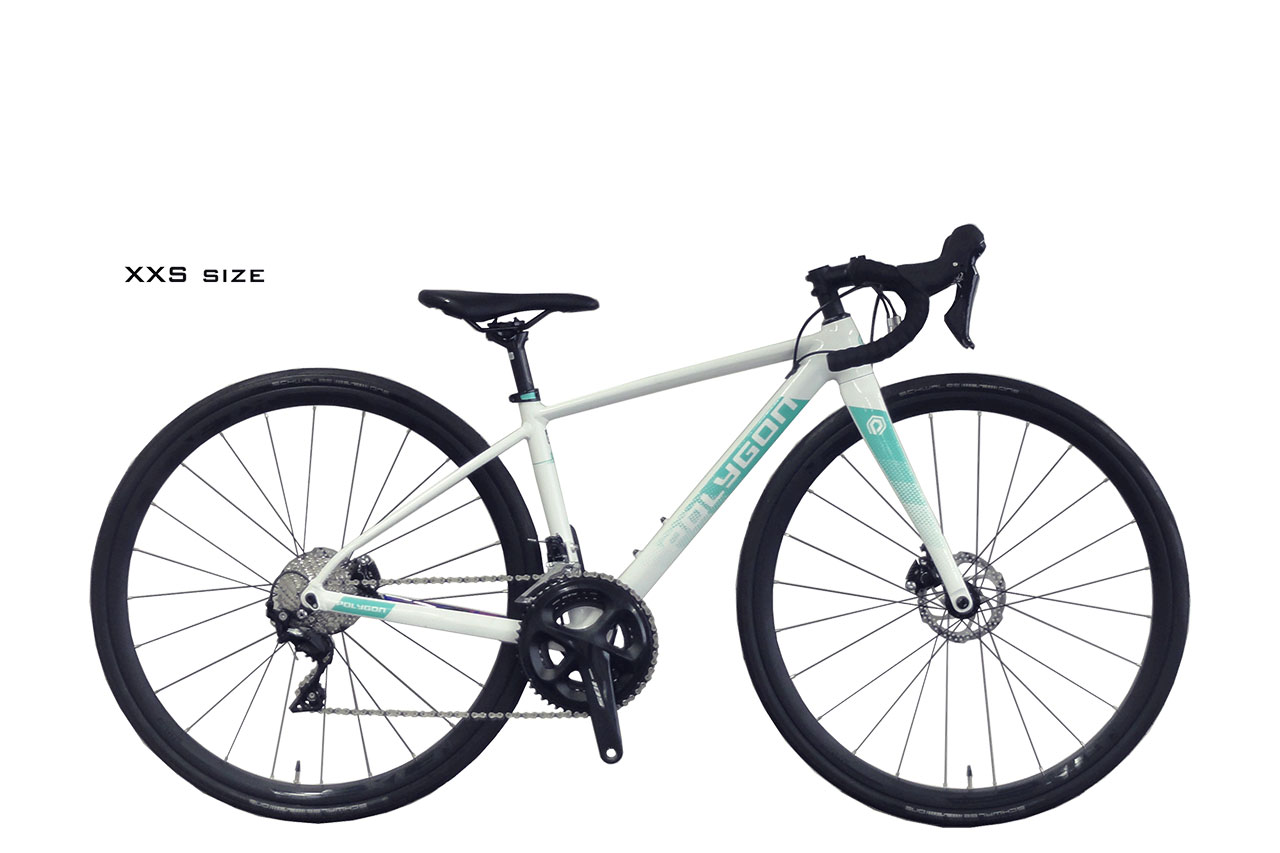

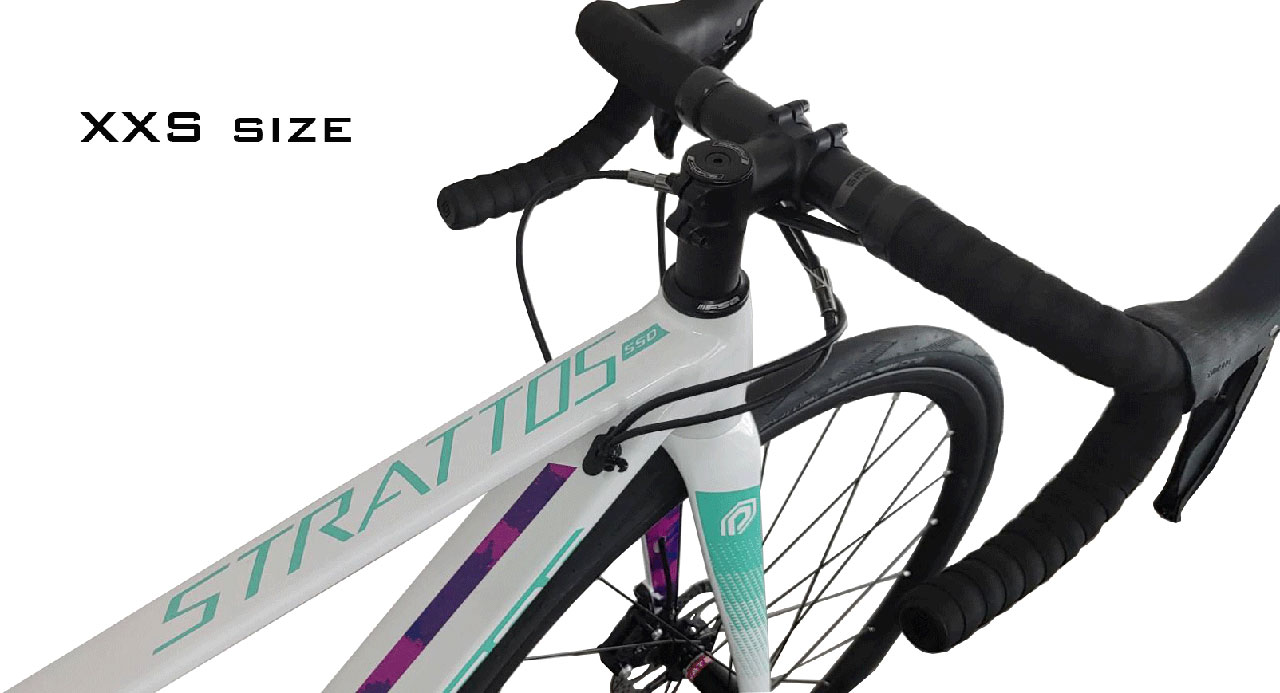

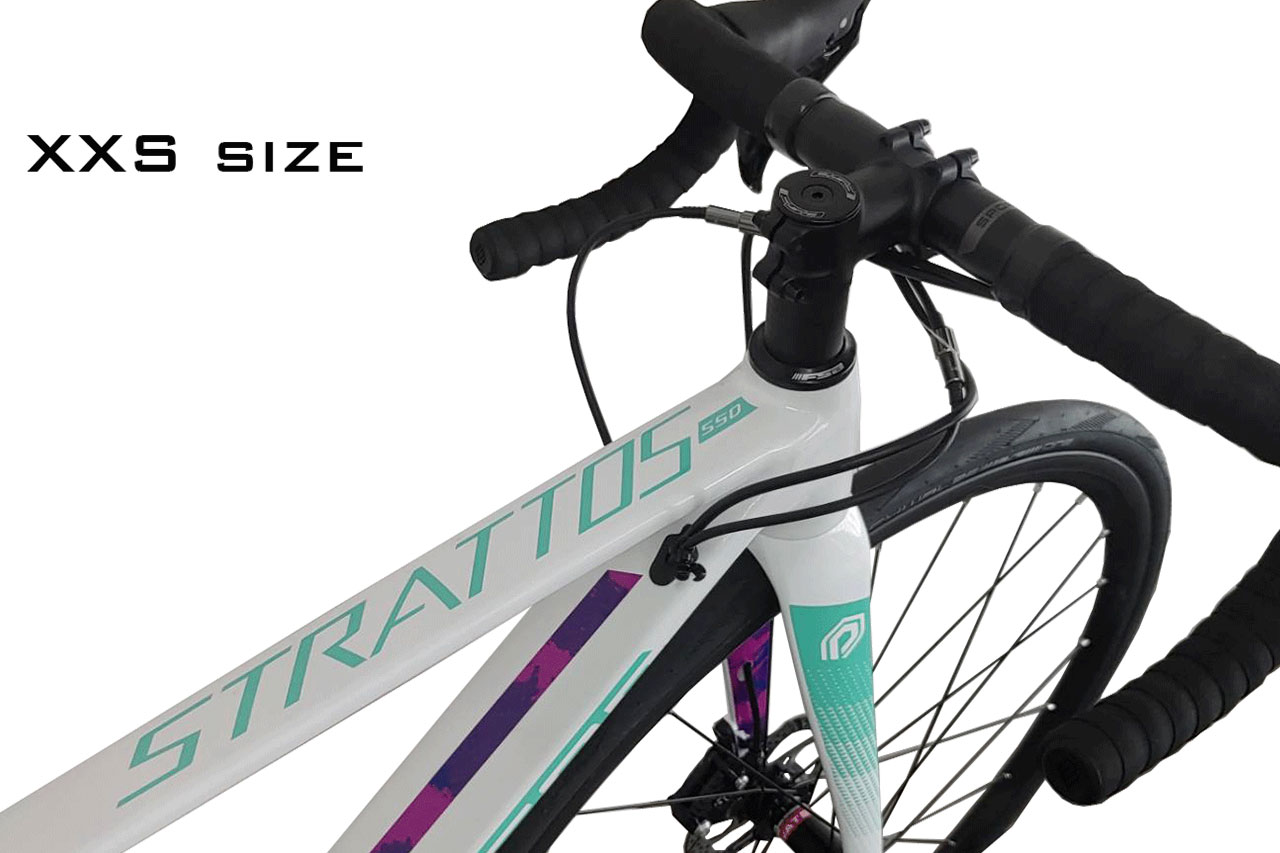

XXSサイズ

XXSはデザインが異なります

シンプルなデザインに秘められた高いポテンシャルのディスクロード

税込価格:¥286,000

FEATURE:

MODEL NAME	STRATTOS S5 DISC
MODEL CATEGORY	RACING BIKES, ALLOY, 105 22 SP
SIZE (CT)	XXS/XS/S/M/L
COLOR	WHITE
FRAME	ALX PERFORMANCE ROAD, 142MM O.L.D. THRU-AXLE,INTERNAL ROUTE
FORK	ACX PERFORMANCE ROAD, ALLOY TAPER STEERER 1-1/8” TO 1-1/2”
HANDLERBAR	ENTITY SPORT, ALLOY,380MM (XXS), 400MM (XS, S, M, L)
STEM	ENTITY XPERT, ALLOY, 60MM (XXS), 90MM (XS, S), 100MM (M, L) DROP 7DEG
HEADSET	FSA NO.42/ACB, TAPER ID:42/52MM
SADDLE	ENTITY AION, STEEL RAIL
SEATPOST	ENTITY SPORT, ALLOY, 27.2X300MM (XXS), 350MM (XS, S, M, L)
CRANKSET	SHIMANO 105 FC-R7000 50X34T 165MM (XXS, XS), 170MM (S, M, L)
BOTTOM BRACKET	SHIMANO BB-RS500
PEDAL	NIL (XXS), STEEL CAGE (XS, S, M, L)
CHAIN	KMC X-11-1
CASSETTE SPROCKET	SHIMANO 105 CS-R7000, 11-SPEED 11-28T
FRONT DERAILLEUR	SHIMANO 105 FD-R7000-L
REAR DERAILLEUR	SHIMANO 105 RD-R7000-SS
SHIFTING LEVER	SHIMANO 105 ST-R7020
BRAKE LEVER	INTEGRATED WITH SHIFTER
BRAKE	SHIMANO 105
ROTOR	TRP 140mm 6-BOLTS
TYRE	PERFORMANCE TIRES, 700X28C
WHEELSET	ENTITY TUBELESS READY RIMS WITH ALLOY HUB
WEIGHT	9.6 KG (SIZE MEDIUM)

Size	Seat Tube Length	Seat Tube Angle	Effective Seat Tube Angle	Head Tube Length	Head Tube Angle	Effective Top Tube	BB Height	BB Offset	Chainstay Length	Wheelbase	Frame Reach	Frame Stack	Standover Height
	A	B	C	D	E	F	G	H	I	J	K	L	M
XXS	390	75.5	75.5	90	70.5	498	272	72.5 Drop	415	975.4	371	489	648
XS	450	75	75	90	72	515	272	72.5 Drop	415	975.54	374.69	518.54	722.25
S	470	74.5	74.5	105	72.5	525	272	72.5 Drop	415	977.32	379.69	533.48	744.47
M	500	74	74	130	73	540	274.5	70 Drop	415	984.83	384.7	548.8	762.86
L	520	73.5	73.5	155	73	555	274.5	70 Drop	415	995.01	389.7	563.79	784.67

※商品仕様、カラーその他は、予告なく変更される可能性があります
