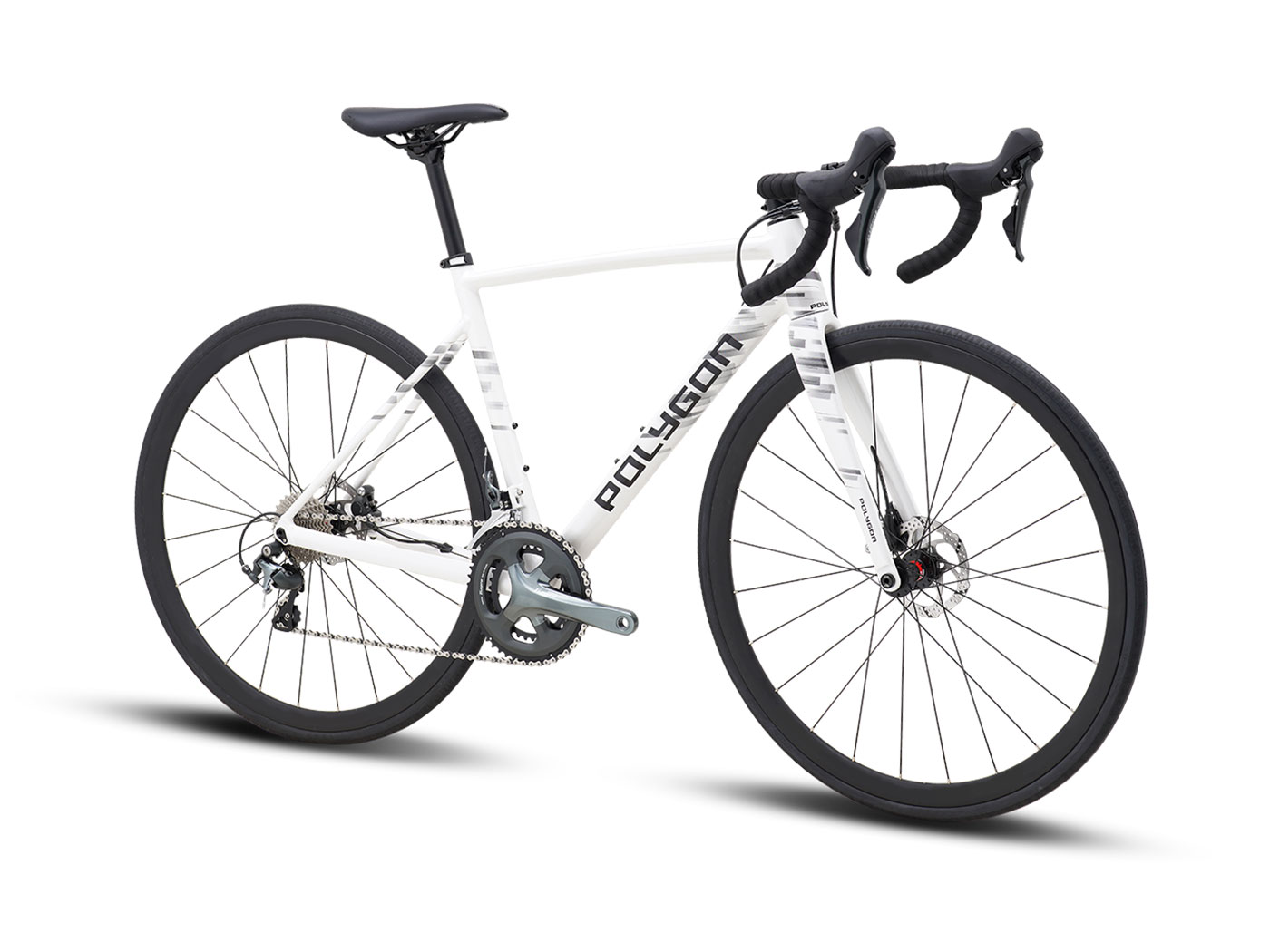

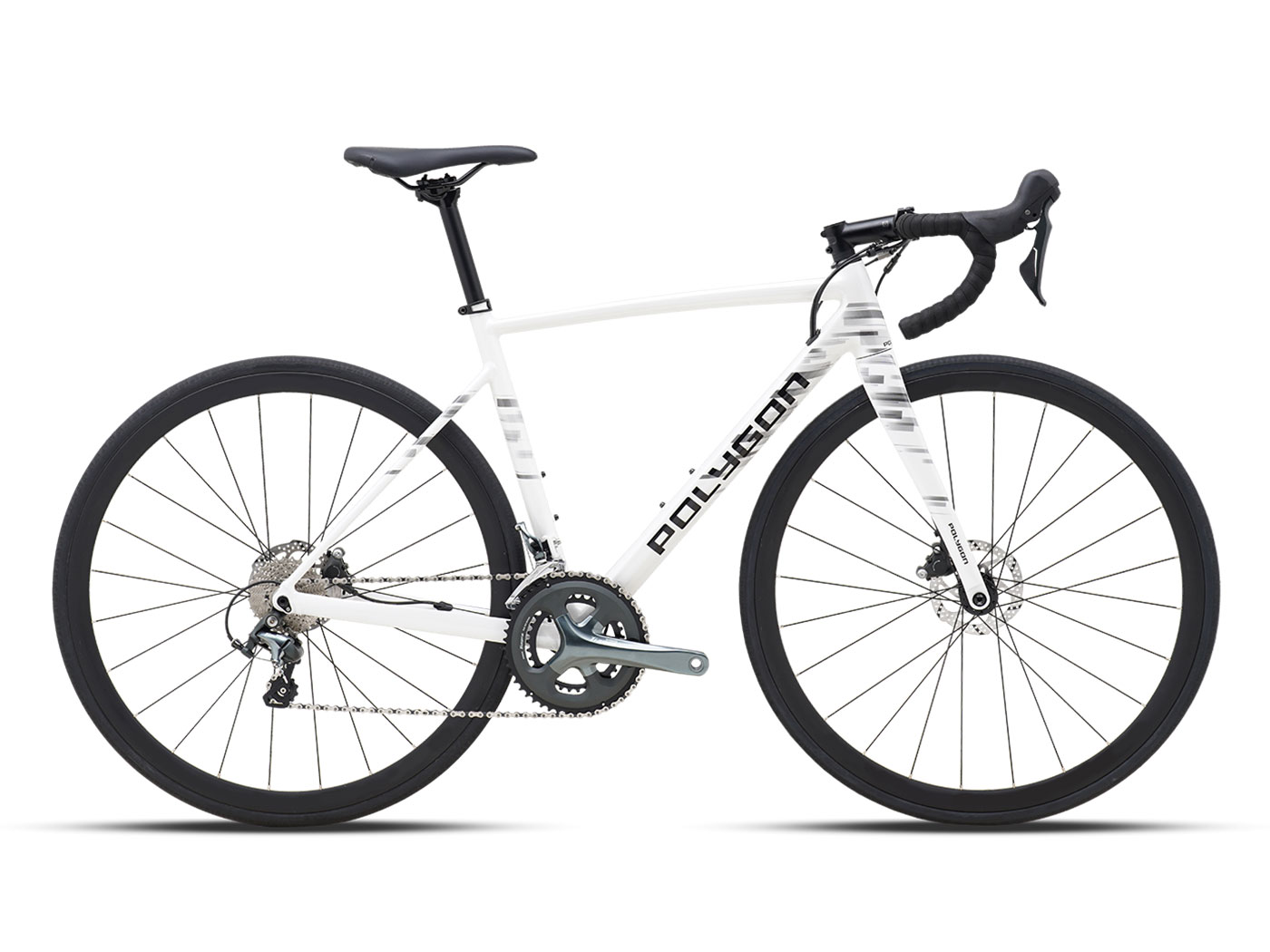

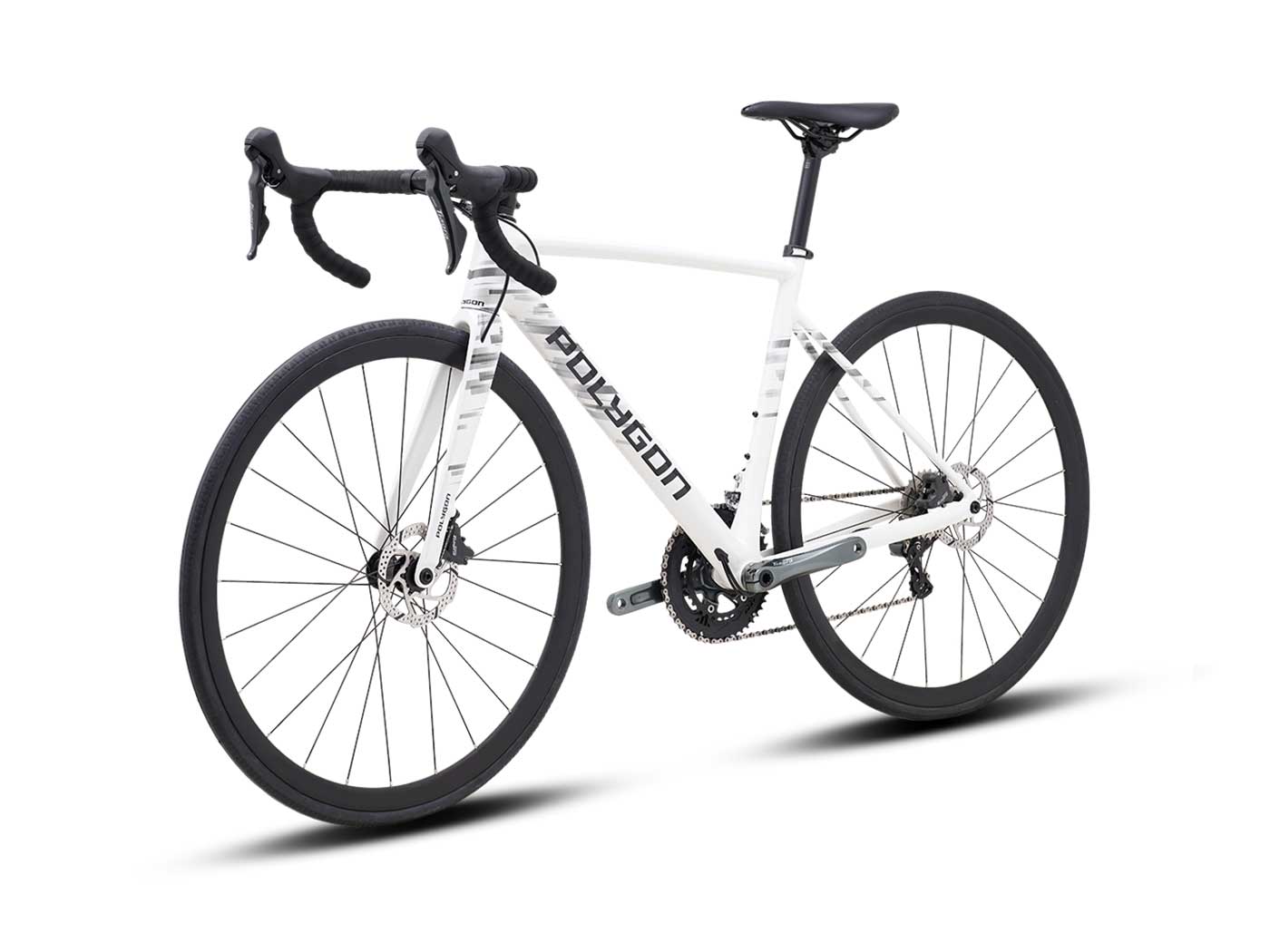

パフォーマンスを犠牲にすることなく乗り心地を向上させたフレームは、友人と景色を楽しみながら乗るときも、アドレナリン全開のレースのときも、いつでも一緒に乗れるバイクです。
税込価格:¥242,000

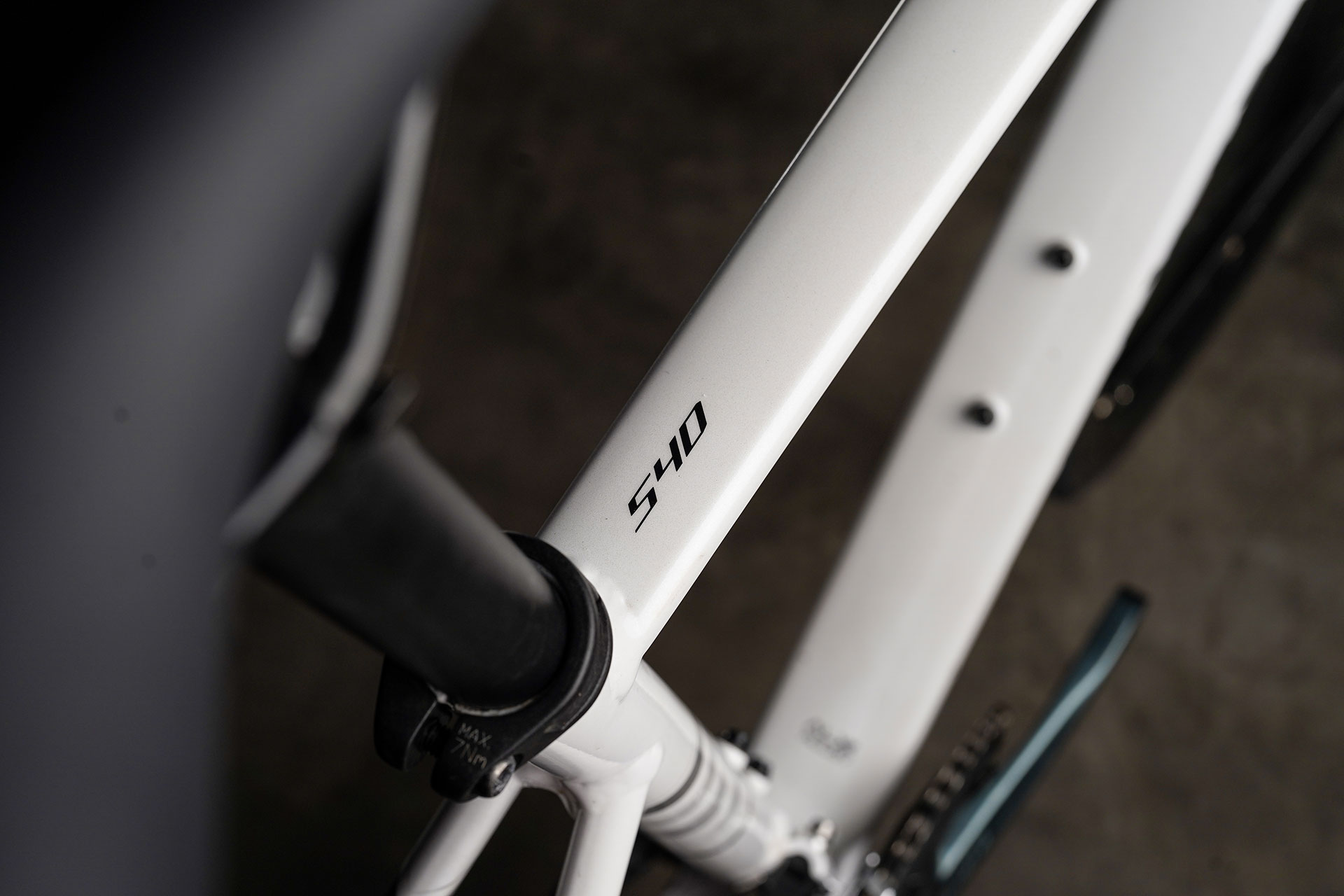

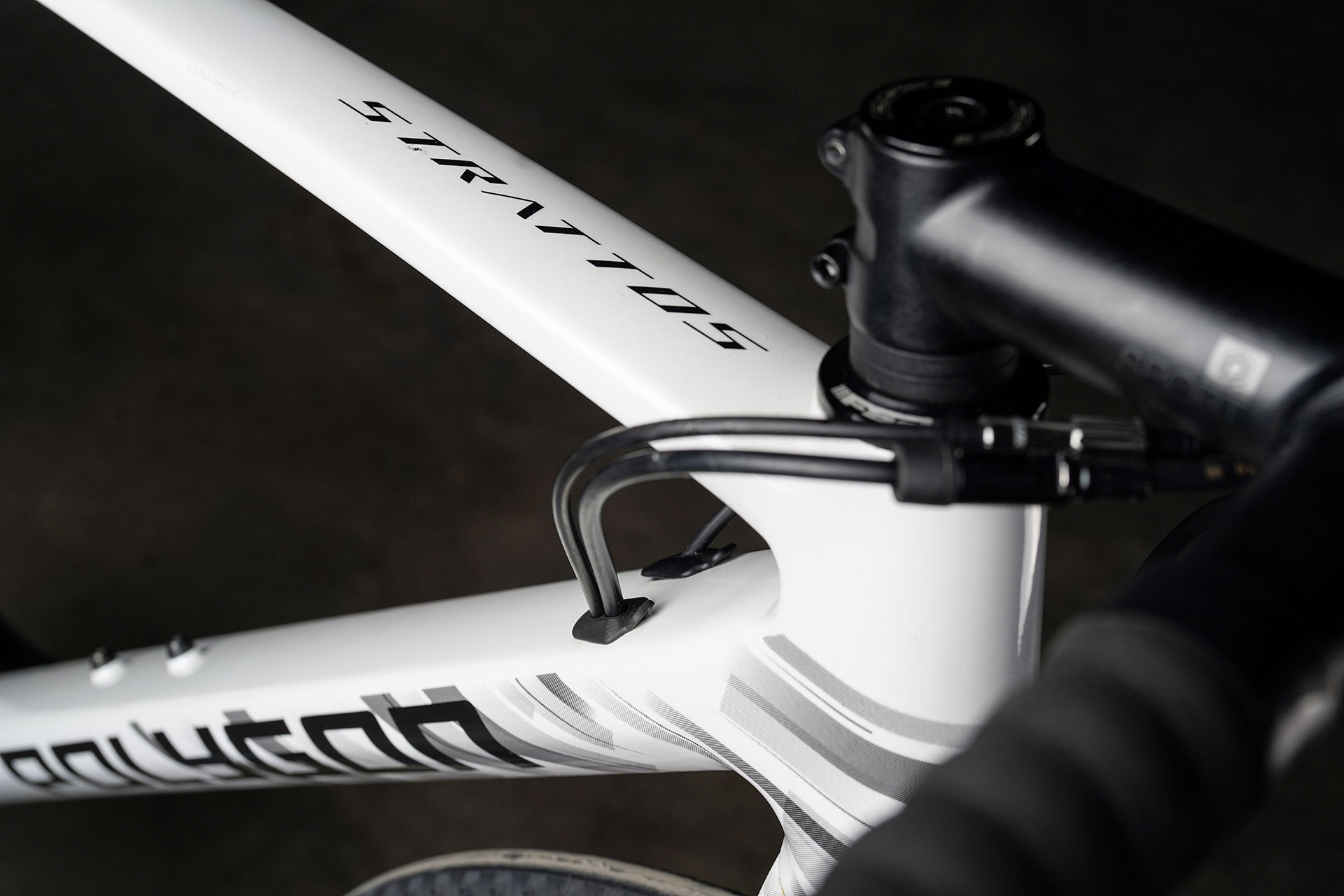

FEATURE:| フレーム | ALX ALL-ROUND |
|---|---|
| Color | WHITE |
| Size | XXS, XS, S, M, L |

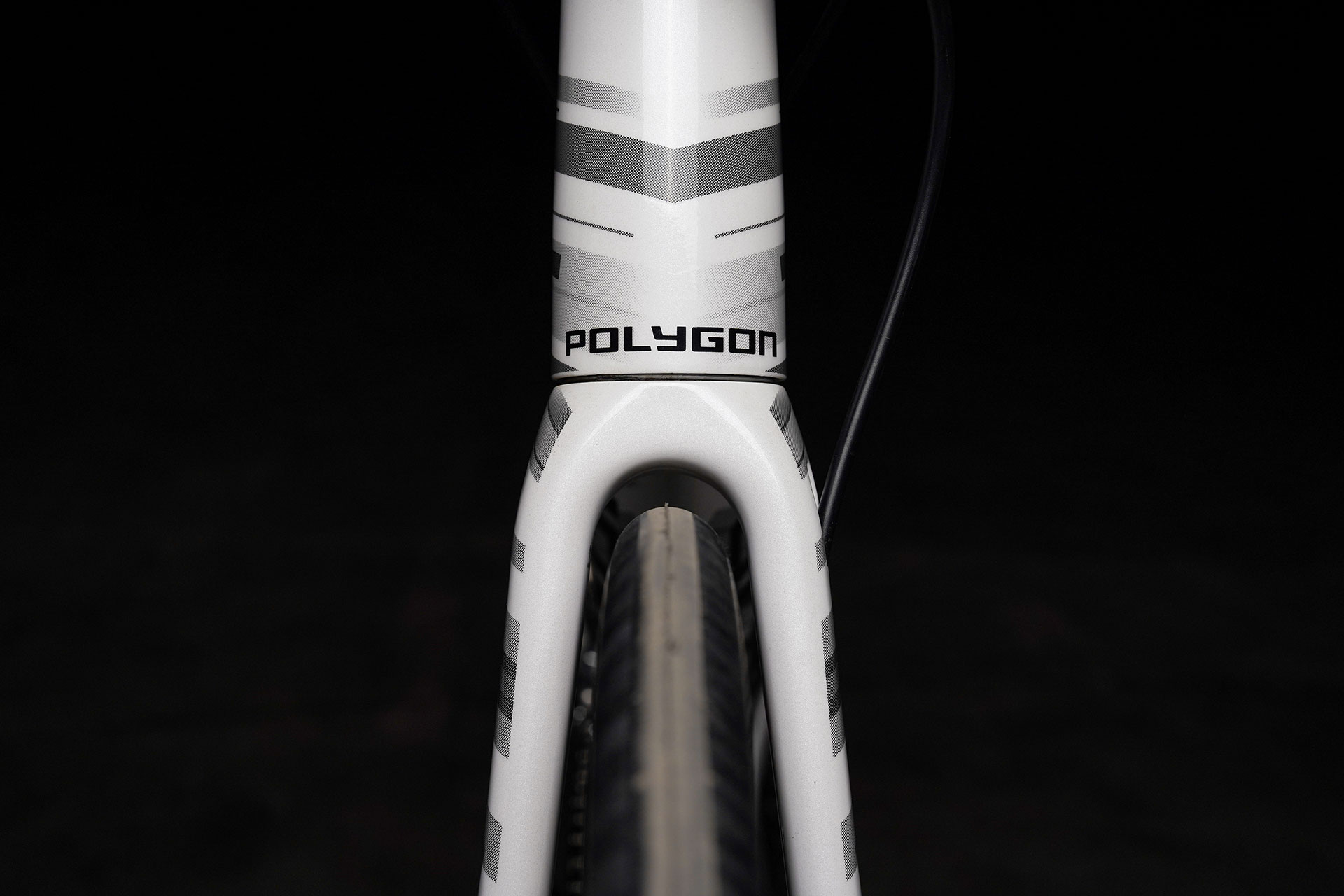

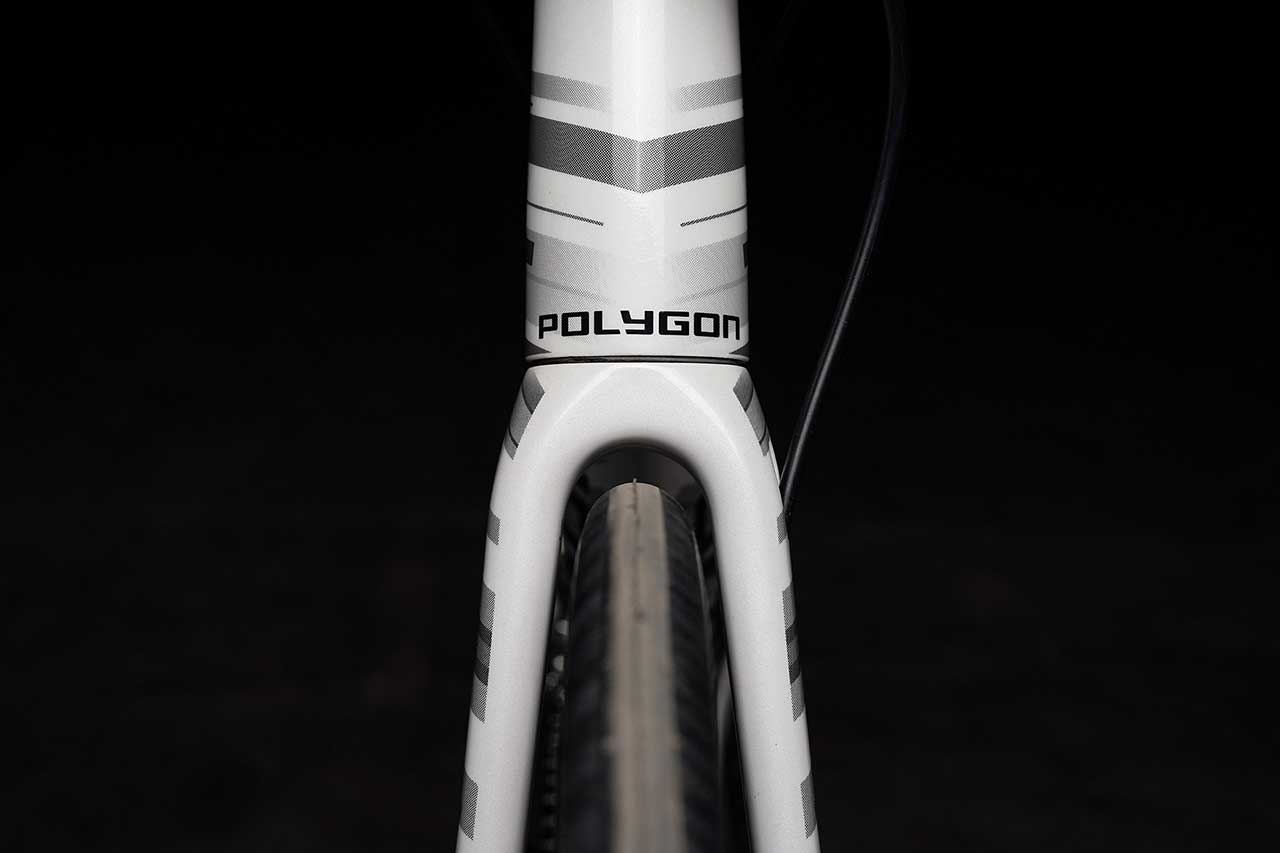

| Fork | ACX ALL-ROUND |
| Crank | SHIMANO TIAGRA FC-4700 50/34T |
| Shifter | SHIMANO TIAGRA ST-R4720, 2x10-SPEED DUAL CONTROL LEVER |
| Cassette | SHIMANO TIAGRA CS-HG500 12-28T |

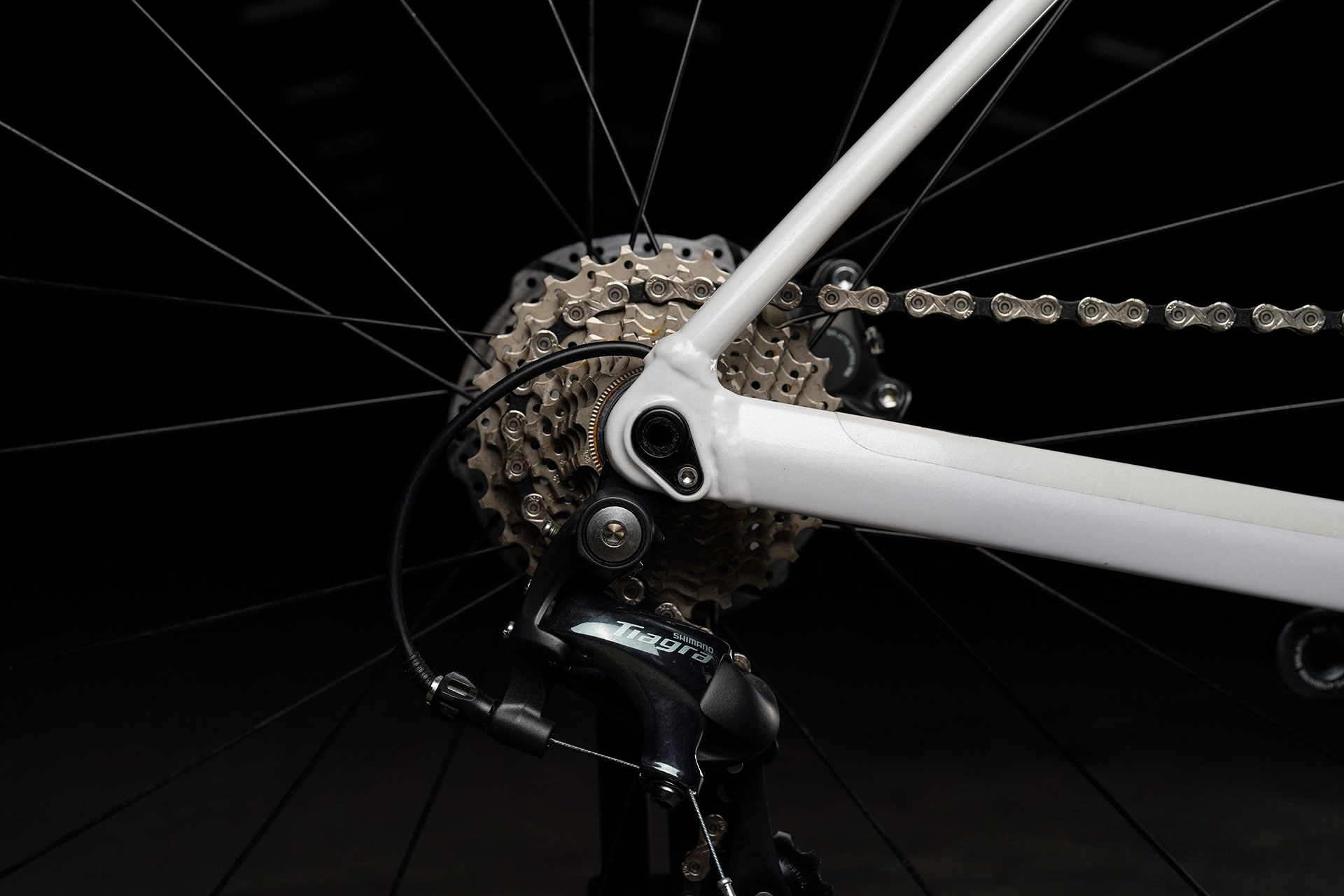

| Rear Derailleur | SHIMANO TIAGRA RD-4700-SS DIRECT ATTACH |
| BB | SHIMANO BB-RS501, BSA THREADED 68mm |
| Saddle | BLACK, STEEL o 7mm |
| Seatpost | POLYGON SPORT ALLOY, DxL: 27.2 x 350mm |
| Handlebar | POLYGON SPORT ALLOY , BB: 31.8mm, R/D: 124mm, B/R: 80mm |
| Handlestem | POLYGON OE ALLOY |
| Headset | ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40 |
| Wheel Set | POLYGON RD6 DISC TUBELESS READY W/ TUBELESS TAPE INSTALLED |
| Tire | SCHWALBE ONE ADDIX TLE 700x28C |

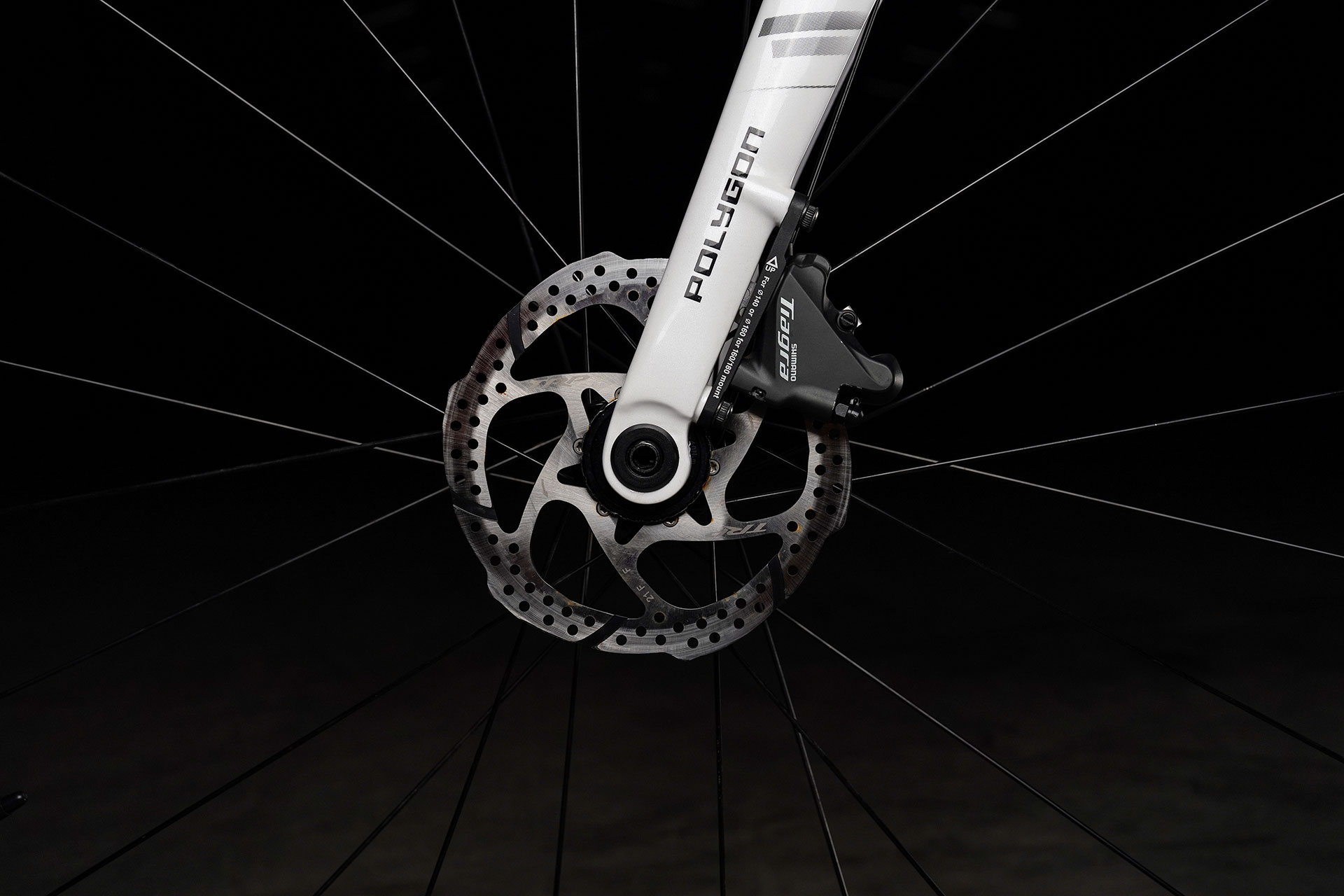

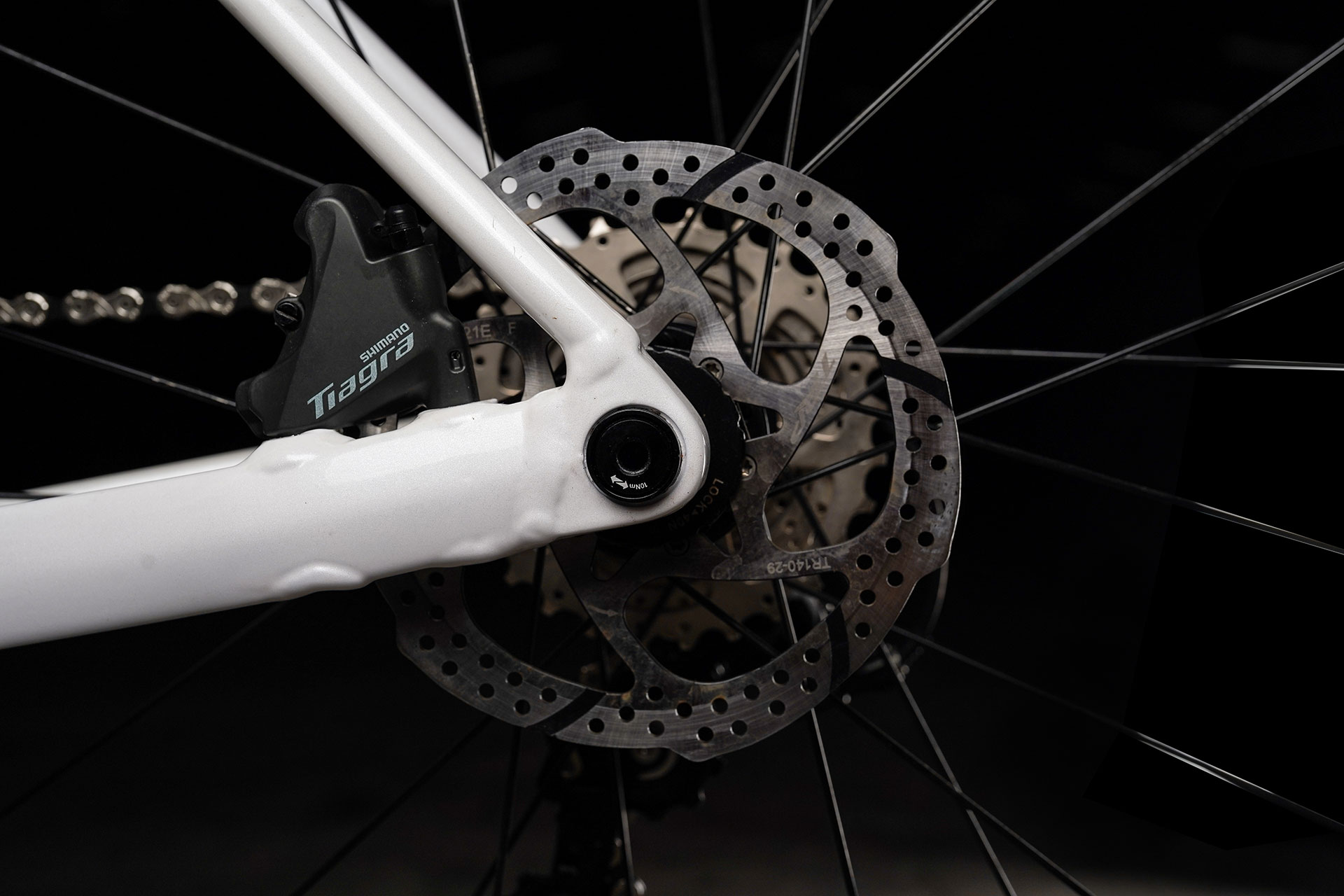

| Brake | SHIMANO BR-4770 HYDRAULIC |
| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 390 | 75.5 | 75.5 | 90 | 70.5 | 498 | 272 | 72.5 Drop | 415 | 975.4 | 371 | 489 | 648 |
| XS | 450 | 75 | 75 | 90 | 72 | 525 | 272 | 72.5 Drop | 415 | 975.54 | 374.69 | 518.54 | 722.25 |
| S | 470 | 74.5 | 74.5 | 105 | 72.5 | 525 | 272 | 72.5 Drop | 415 | 977.32 | 379.69 | 533.48 | 744.47 |
| M | 500 | 74 | 74 | 130 | 73 | 540 | 274.5 | 70 Drop | 415 | 984.83 | 384.7 | 548.8 | 762.86 |
| L | 520 | 73.5 | 73.5 | 155 | 73 | 555 | 274.5 | 70 Drop | 415 | 995.01 | 389.7 | 563.79 | 784.67 |
| 140 | 145 | 150 | 155 | 160 | 165 | 170 | 175 | 180 | 185 | 190 | cm | |
| XXS | ||||||||||||
| XS | ||||||||||||
| S | ||||||||||||
| M | ||||||||||||
| L |
※商品仕様、カラーその他は、予告なく変更される可能性があります
