税込価格:¥176,000
FEATURE:| Frame | ALX XC 120MM TRAVEL (27.5”) TAPER H/T QR BOOST |
|---|---|
| Fork | SR SUNTOUR XCM HLO , QR 100MM, 120MM TRAVEL |
| Rear Shock | SR SUNTOUR RAIDON LO AIR E2E:190X51MM HARDWARE:M8X22MM |
| Head Set | THREADLESS ZERO STACK HEADSET |
| Stem | ENTITY SPORT, ALLOY |
| Handlebar | ENTITY SPORT, ALLOY |
| Rear Derailleur | SHIMANO RD-M3100 |
| Shifter | SHIMANO SL-M3100, 2x9 SPEED TRIGGER |
| Bottom Bracket | INCLUDE CRANKSET |
| Crank Set | SHIMANO ALTUS FC-MT2102 36T |
| Cassette | SHIMANO CS-HG200 11-36T |
| Chain | KMC X9 |
| Pedal | - |
| Brake | SHIMANO HYDRAULIC DISC BRAKE |
| Wheel Set | ALLOY DOUBLE WALL 32H |
| Tire | SPIDERBAIT TIRE 27.5"x2.25" |
| Saddle | ENTITY VOID SADDLE |
| Seat Post | ENTITY SPORT, ALLOY |
| Wheel Size | 27.5" |
| Color | RED BLACK |
| Weight | 17.03kg (27.5 M) |

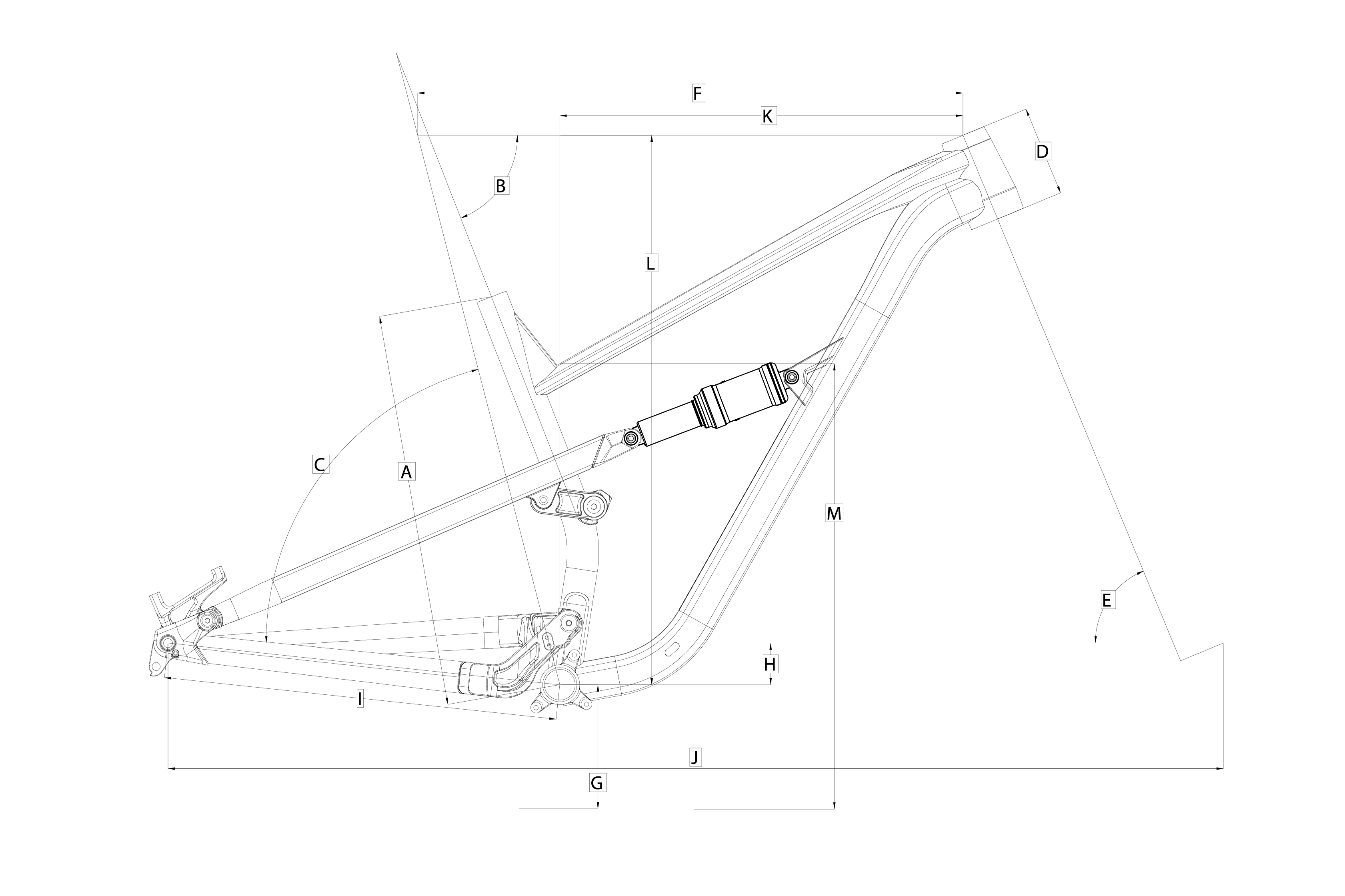

| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 395 | 70 | 75.5 | 102 | 67 | 572.7 | 326 | 27 | 432 | 1133 | 425 | 571.2 | 676 |
| 17 | 435 | 70 | 75.5 | 105 | 67 | 595.1 | 326 | 27 | 432 | 1157 | 445 | 580.4 | 696 |
| 140 | 145 | 150 | 155 | 160 | 165 | 170 | 175 | 180 | 185 | 190 | cm | |
| 15.5 | ||||||||||||
| 17 |
※商品仕様、カラーその他は、予告なく変更される可能性があります
